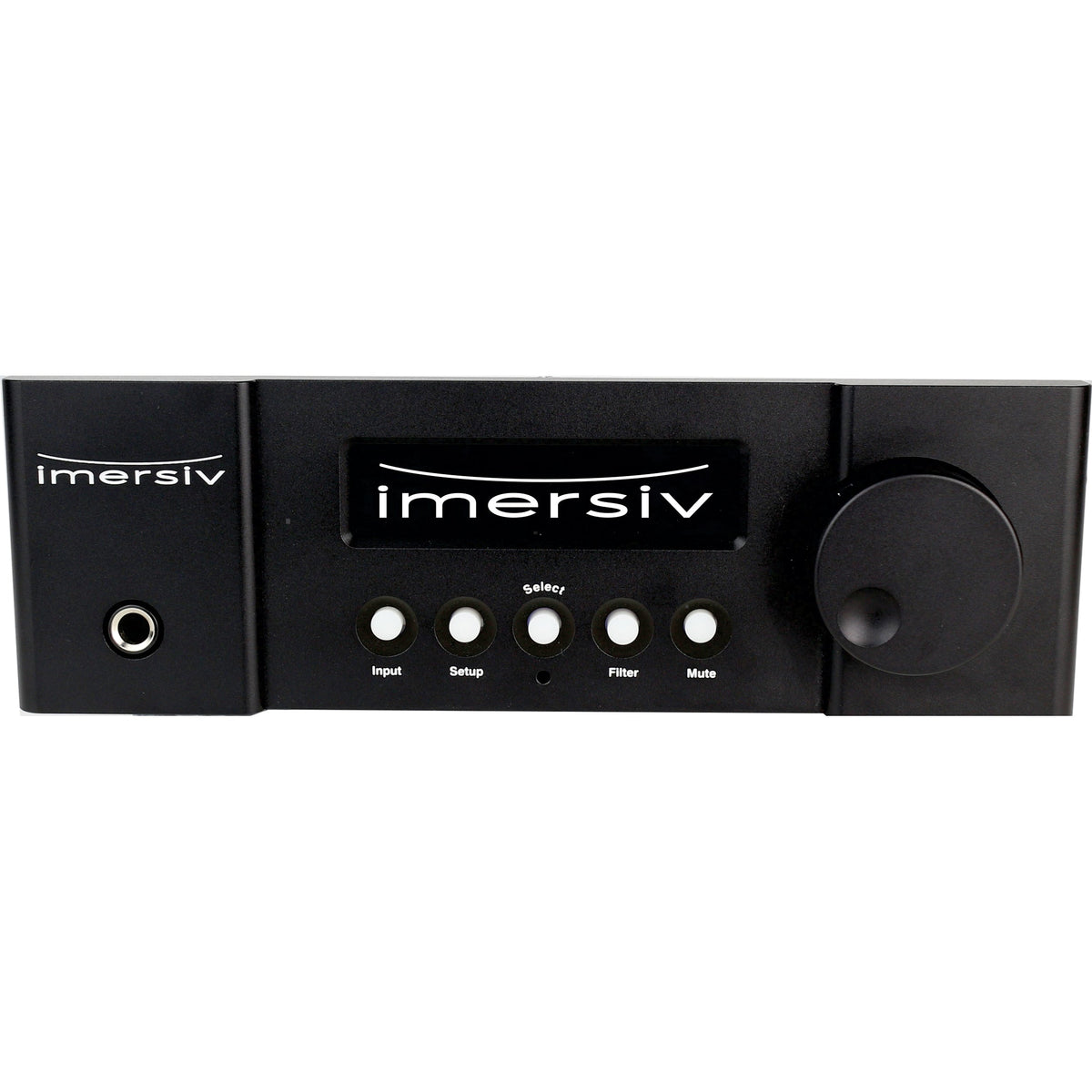

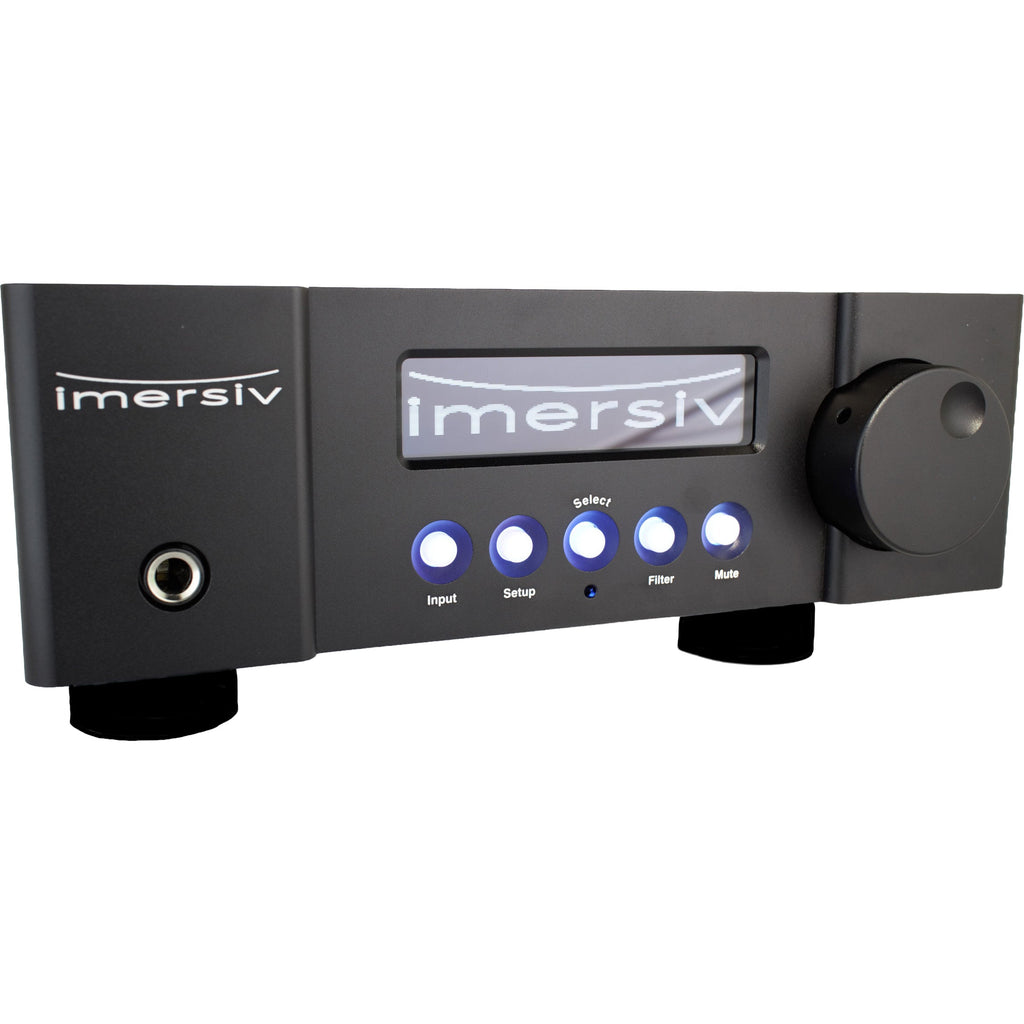

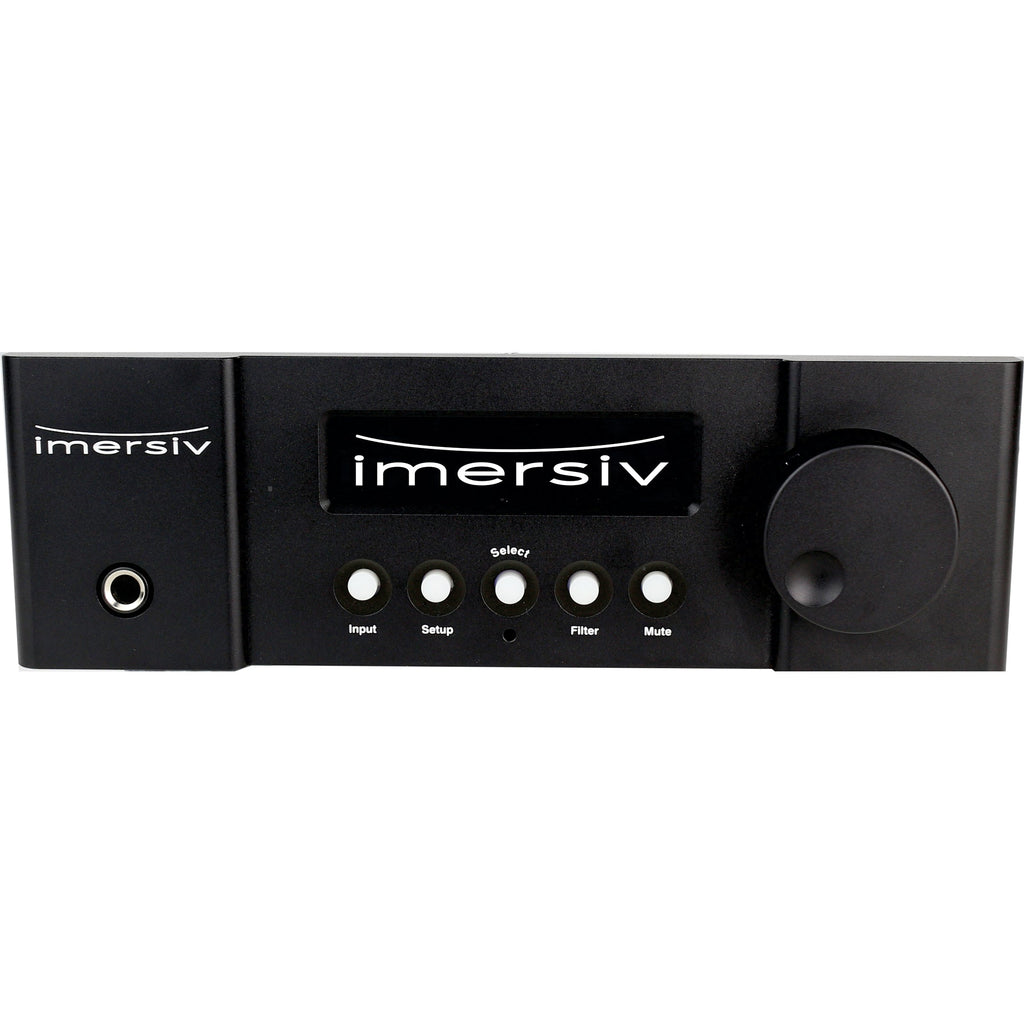

Imersiv D-1 28-Bit DAC - Black

$7,200.00 USD

Shipping calculated at checkout.

Paradigm Shift

Welcome to the most significant audio breakthrough since digital conversion. Delivering noise, linearity, and dynamic range performance so advanced that modern test equipment cannot measure it.ImersivHDR-Ais a revolutionary new multiple-path audio architecture, poised to fully re-imagine the way we capture and deliver sound, from microphone to power amplifier, and everything in-between.

HDR-A

You may be familiar with HDR or High Dynamic Range photography. This is an image process that dramatically increases the dynamic range of photographic light. See the comparison showing a traditional photograph versus an HDR photograph. The improvement in HDR low-level detail is stunning.

Multi-path music processing is to audio what HDR is to photography. The analogy is so perfect that we’re calling itHDR-AorHigh Dynamic Range Audio.

InHDR photography,multiple stacked exposures are intelligently summed into a single photo, resulting in significantly improved dynamic range. InimersivHDR-A audio,multiple stacked sound levels are intelligently summed into a single audio file, resulting in dramatically improved dynamic range.

The image comparison is directly analogous to the improvement in low-level audio clarity and atmospheric depth experienced with imersivHDR-Amulti-path processing.

Realization

PerfectingHDR-Atook over 10 years of continuous research and development. The graph shows how it works.

Path 1is an audio signal with 90dB of dynamic range, from 0dB to 90dB.Path 2is an audio signal with 100dB of dynamic range, from 80dB to 180dB. When paths 1 & 2 are combined, the resulting dynamic range is180dB,from 0dB to 180dB. That’s multi-path high dynamic range audio.

Multi-pathHDR-Aoffers two major advantages over traditional single-path methods. First, it significantly reduces noise and distortion (THD+N). TheimersivD-1 achieves a remarkable 40 nanovolts of broadband noise, which is around 40 dB lower — 100 times quieter — than today’s best DAC designs. In fact, the D-1’s self-noise is 25dB below the measurement capability of today’s leading test equipment, such as the APx555B

The second advantage is untethered headroom.HDR-Atechnology allows us to boost high-path headroom toany levelwithout affecting our quiescent self-noise. The D-1 provides +22dBu (10 volts) of ISO-free* headroom while maintaining its profoundly low 40nV self-noise floor. This results in a true broadband, unweighted linearity and dynamic range of28 bitsor 168dB. (*inter-sample overs or inter-sample peaks)

Multi-path is the next design standard of audio architecture, from microphone to power amp, and everything in between.

Purity

Acoustic recording engineers — whether in film scoring, classical music, jazz, or other genres — understand that spatial information is conveyed in the quiet moments: in the space between notes; in the subtle decay of a piano chord just before it fades from perception; in the brief instant a note is first struck, before it reaches its peak. Quoting one of today’s top recording engineers, “On the music side, everything in the quiet neighborhood is where we get the ‘life’ and spatial cues in a recording. Distortion of lower-level partials is the very first casualty of any acoustic recording.”

Extraordinarily pure low-level audio is a key reason why HDR-A topology delivers improved spatial and timbral realism compared with legacy single-path DACs. When audio levels drop below a certain threshold, HDR-A begins processing in a new DAC core — with dramatically lower distortion+noise (THD+N) performance.

Compare a low-level, perceptible sine wave on the D-1 multi-path DAC versus a high quality single-path DAC. Single-path waveforms are jaggy and noisy. We hear this as poor image definition, atmospheric collapse, and a blurring of complex timbres — while HDR-A “new core” signals remain pure and natural, even far below the limits of human hearing.

Pedigree

Built upon 35 years of innovation in pro-audio design and U.S.-based manufacturing, theimersivD-1 embodies a heritage of excellence that has shaped the sound of our era’s most celebrated recordings. Millennia’s 2019 induction into the NAMM Technology Hall of Fame acknowledges our lasting influence and commitment to redefining professional audio. We adhere to aerospace-grade design, build, and QA standards, required by our esteemed clients — ranging from classical music recording engineers, broadcast engineers for major events like the Grammys and Oscars, and film scoring stages from Hollywood to Mumbai. It’s no surprise that pre-owned Millennia products consistently achieve top resale value within their professional categories.
